VERTISTACK™ CLEAR DOOR

Full-View Stacking Door

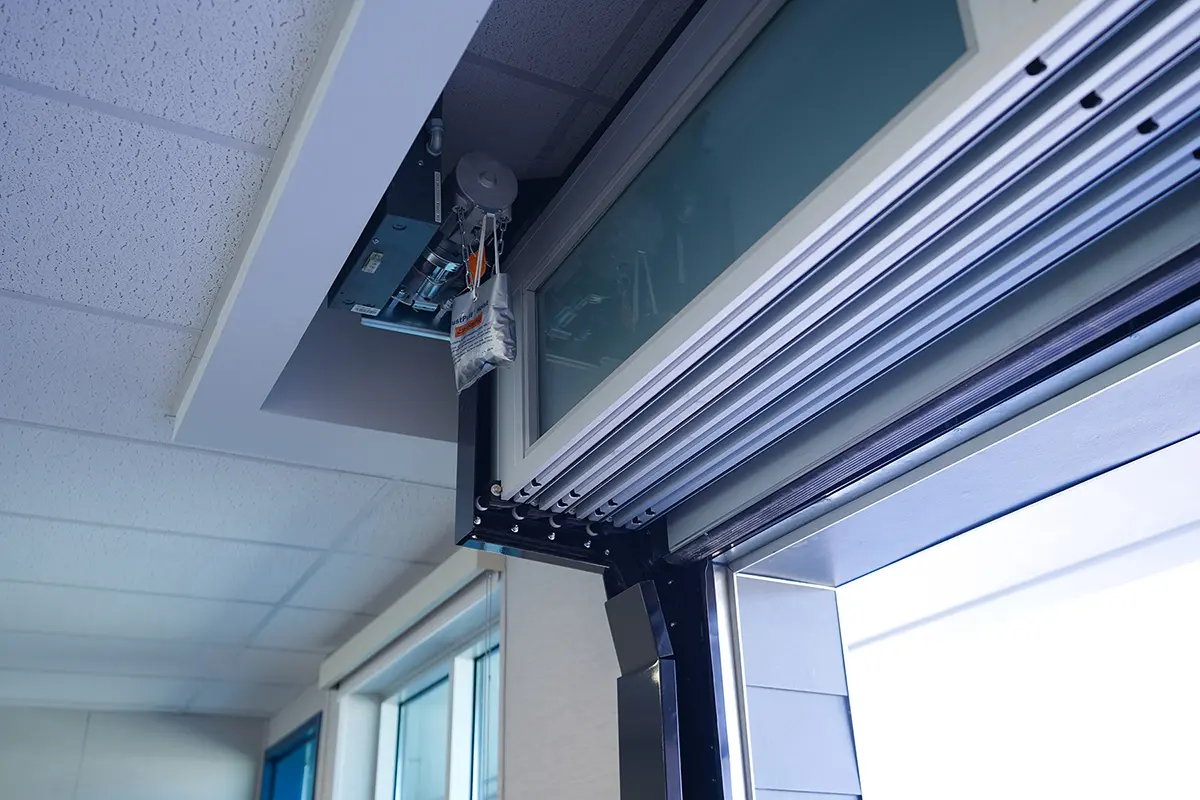

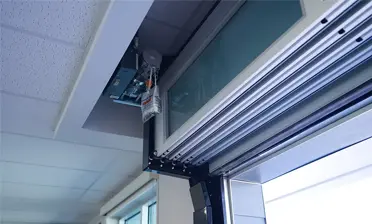

The VertiStack Clear door features a unique construction with sections that stack above the opening, eliminating the need for overhead tracks. This allows for a clear ceiling and won't conflict with mechanical, electrical or plumbing fixtures located in the ceiling. Designed with a clean, modern aesthetic, there are no hinges or exposed tracks or cables, and it is available with a variety of aluminum finishes and window materials.

Request a Quote
ModelsOptionsFeatures & BenefitsSpecs/DrawingsBrochuresSprings & Hardware
Models

MODEL VS904 STANDARD SPECIFICATIONS

Min Opening Width
4'6"
Max Opening Width
14'0"
Min Opening Height
4'0"
Max Opening Height
14'0"
Thickness
2 1/8"
R-Value
N/A


The door will always be 6” wider than the opening width, so door width range is 5’0 to 14’6”.

This product is available for commercial applications only, not for residential applications at this time.

CALCULATE NUMBER OF PANELS AND SECTIONS

Door Height

Door Width

Options

FULL-VIEW DOOR

GLASS/PANEL OPTIONS:

904-Gray
FULL-VIEW (VS904)


GLAZING MATERIAL OPTIONS:

CLEAR GLASS
GRAY TINTED GLASS
BRONZE TINTED GLASS
MIRRORED GLASS*
OBSCURE GLASS
WHITE LAMINATE GLASS*
Black Laminate Glass
BLACK LAMINATE GLASS*
FROSTED GLASS OR ACRYLIC
CLEAR ACRYLIC
GRAY ACRYLIC
WHITE ACRYLIC
CLEAR POLYCARBONATE
BRONZE POLYCARBONATE
ALUMINUM PANEL COLOR MATCH

*Mirrored and laminate not available in 1/2"

Glass thickness available in 1/8", 1/4" and 1/2". Tri-wall polycarbonate thickness available in 5/8".

COLOR OPTIONS:

CLEAR ALUMINUM (ANODIZED)
CLEAR ALUMINUM (ANODIZED)
STANDARD WHITE
STANDARD WHITE
BRONZE (PAINTED)
BRONZE (PAINTED)
CHOCOLATE (PAINTED)
CHOCOLATE (PAINTED)
BRONZE (ANODIZED)
BRONZE ANODIZED*
BLACK (ANODIZED)
BLACK (ANODIZED)*
DARK BRONZE (ANODIZED)
DARK BRONZE ANODIZED*

Request Color Samples

*Additional cost and lead time may apply. The use of “Bronze (Painted)” is recommended due to slight color variation that may occur during the anodizing process.

This product is available for commercial applications only, not for residential applications at this time.

Features & Benefits

Full-View Door

MODEL VS904

Stiles:Double end stiles standard
Glazing Available:Variety of glass and acrylic panels are available including tempered, insulated, frosted and low-E options
Glass/Acrylic Thickness:

Glass thickness available in 1/8", 1/4" and 1/2". Tri-wall polycarbonate thickness available in 5/8".

Springs:25,000 standard cycle
Track Size:2" track standard

Made of 2-1/8” durable commercial grade aluminum, making it virtually maintenance-free and long-lasting.
windcode-W
WindCode® reinforcement standard at W4 design pressure (DP) 25 PSF. Doors tested 50% greater than DP.



This product is available for commercial applications only, not for residential applications at this time.

Specs/Drawings
Models BIM Shop Drawing Specification Literature(PDF) Instruction Manual(PDF) Warranty
Model VS904 RFA Icon DOC Icon VS904 Brochure Installation Manual PDF Icon
Brochures

VS904 Brochure
VS904 Brochure
Springs & Hardware

HARDWARE

25,000 cycle torsion springs

Section locking devices on both sides of the door for increased security

High-strength strap assembly

Commercial 10 ball rollers

2” track mounted to a full-height 12-gauge wall angle

This product is available for commercial applications only, not for residential applications at this time.
